AS A GENERAL GUIDE FOR DRILL COMPATIBILITY, BULLSEYEBORE CORE WILL WORK WITH MOST COMMON COMMERCIAL ELECTRIC DRILLS THAT MEET THE FOLLOWING CONDITIONS:
The drill chuck face is metallic and flat. The “chuck face” is the very front of the chuck.
The drill chuck is a common keyed, keyless, or a standard ¼” hex shank chuck.
The drill chuck has a bit hole of less than or equal to 0.56" diameter.
The maximum drill RPM is equal to or less than 2500 RPM.

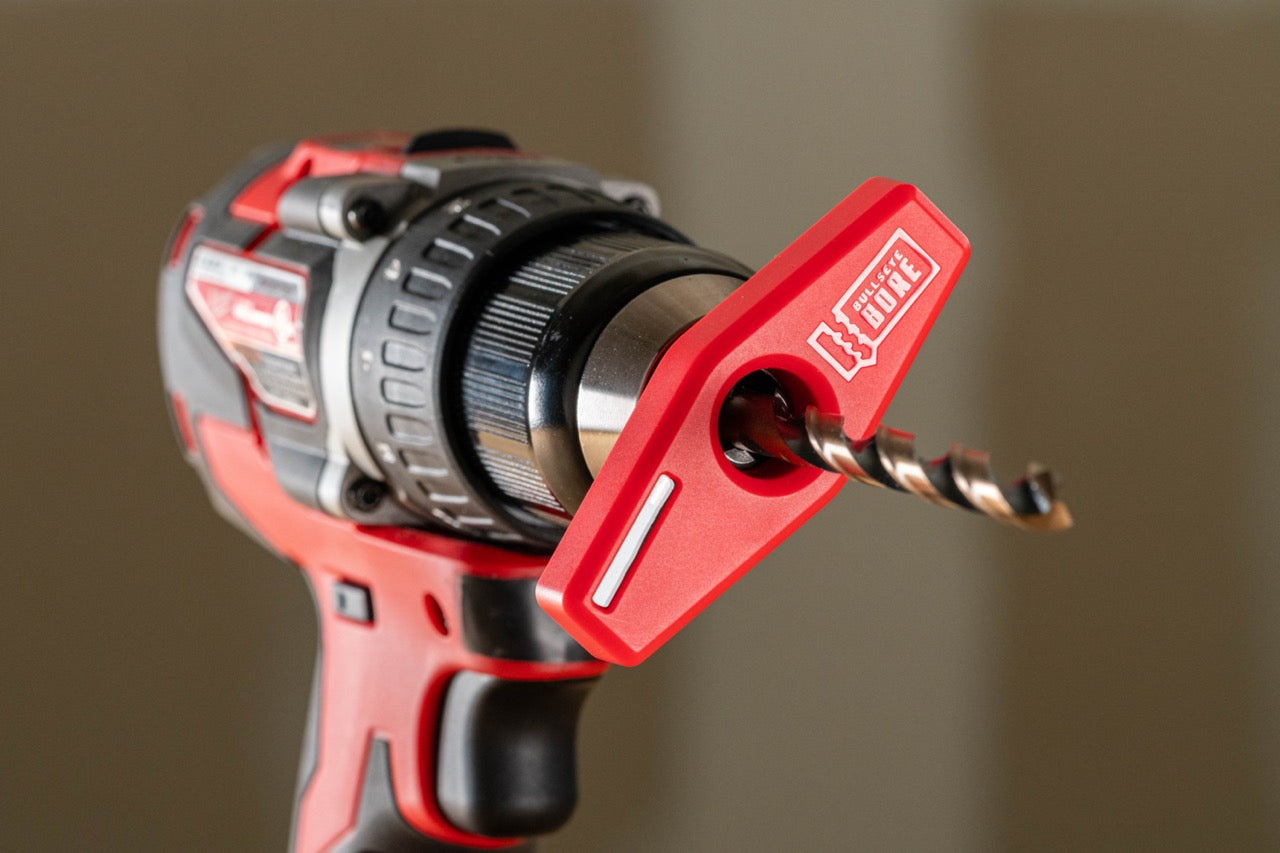

BullseyeBore Core and the accessories were designed with the goal of working with most common standard electric drills and drill chucks, but due to the vast number of drill and chuck combinations, some careful user testing is required prior to use. Please read and follow the BullseyeBore Core Safety Guidelines before attempting to use BullseyeBore Core or any accessories on a drill or in an actual drilling operation.
You MUST use a Standard Chuck Alignment Guide if you intend to mount BullseyeBore Core on a hex shank chuck or a chuck with a small front face. Most standard chucks also benefit from a Standard Chuck Alignment Guide for proper operation and alignment. A Standard Chuck Alignment Guide prevents displacement of BullseyeBore Core across the chuck face or detachment during rotation.
Chuck Extensions are recommended for use with bits 4"+ in length including spade and auger bits. Chuck extensions are also recommended for use with the CR1-100 and CG1-100 models.
The BullseyeBore Core versions have certain visibility limitations depending on lighting conditions. None of the current versions will be operationally visible in direct sunlight. In indirect sunlight, the Core Green versions (CG1-100 and CG1-101) are visible in some conditions, though visibility may be limited depending on ambient light intensity. However, Core Green versions perform well in bright indoor lighting environments.
The chart below provides a quick guide to compatibility based on the drill and chuck type for BullseyeBore Core and the Standard Chuck Guide and Chuck Extension accessories. Additionally, the BullseyeBore Core FAQ contains much more detail on Drill and Drill Chuck compatibility for BullseyeBore Core and its accessories.
| BullseyeBore Product | BullseyeBore Core Models CR1-100, CR1-101, CG1-100, CG1-101 | Accessory: Standard Chuck Guide | Accessory: Chuck Extension |
|---|---|---|---|
| Standard Electric Drill with a Keyed or Keyless Drill Chuck | Generally compatible (1*) under the following conditions: 1) Drill chuck has a round, metallic, flat face of greater than or equal to 0.65" diameter. 2) Drill chuck has a bit hole of less than or equal to 0.56" diameter. 3) Depending on the chuck face dimensions and size, an optional Standard Chuck Guide may be required to prevent displacement on the chuck face or detachment during rotation. 4) Maximum drill RPM is equal to or less than 2500 RPM. | Generally compatible (1*) under the following conditions: 1) Drill chuck has a round, metallic, flat face of less than 1.10" and greater than 0.70". 2) Maximum drill RPM is equal to or less than 2500 RPM. 3) Use only a Standard Chuck Guide with a center hole diameter that is slightly larger than the round, metallic flat chuck face. | Generally compatible (1*) under the following conditions: 1) Drill chuck has a round, metallic, flat face of greater than or equal to 0.65" diameter. 2) Drill chuck has a bit hole of less than or equal to 0.56" diameter and larger than or equal to 0.414". 3) Maximum drill RPM is equal to or less than 2500 RPM. |
| Electric Hammer Drill with a Keyed or Keyless Common Drill Chuck | Generally compatible (1*) under the following conditions: 1) Drill chuck has a round, metallic, flat face of greater than or equal to 0.65" diameter. 2) Drill chuck has a bit hole of less than or equal to 0.56" diameter. 3) Depending on the chuck face dimensions and size, an optional Standard Chuck Guide may be required to prevent displacement on the chuck face or detachment during rotation. 4) Maximum drill RPM is equal to or less than 2500 RPM. 5) The vibrational impact from hammer drills can distort the projected patterns from BullseyeBore. This may have an adverse impact on visualization of the patterns. | Generally compatible (1*) under the following conditions: 1) Drill chuck has a round, metallic, flat face of less than 1.10" and greater than 0.70". 2) Maximum drill RPM is equal to or less than 2500 RPM. 3) Use only a Standard Chuck Guide with a center hole diameter that is slightly larger than the round, metallic flat chuck face. | Generally compatible (1*) under the following conditions: 1) Drill chuck has round, metallic, flat face of greater than or equal to 0.65" diameter. 2) Drill chuck has a bit hole of less than or equal to 0.56" diameter and larger than or equal to 0.414". 3) Maximum drill RPM is equal to or less than 2500 RPM. |
| Electric Drill with Common Hex Shank Drill Chunk | Generally compatible (1*) under the following conditions: 1) Drill chuck is a round, standard 1/4" hex shank chuck that has a flat face of greater than equal to 0.7" diameter. 2) Depending on the chuck face dimensions and size, an optional Standard Chuck Guide may be required to prevent displacement on the chuck face or detachment during rotation. 3) Maximum drill RPM is equal to or less than 2500 RPM. | Generally compatible (1*) under the following conditions: 1) Drill chuck is a round, standard 1/4" hex shank chuck that has a flat face of greater than or equal to 0.7" diameter. 2) Maximum drill RPM is equal to or less than 2500 RPM. 3) Use only a Standard Chuck Guide with a center hole diameter that is slightly larger than the round hex shank chuck. | Chuck Extensions are INCOMPATIBLE with Hex Shank drill chucks. Do NOT attempt to use Chuck Extensions with Hex Shank drill chucks. |
| Pneumatic Drill with a Keyed or Keyless Common Drill Chuck | Generally compatible (1*) under following conditions: 1) Drill chuck has a round, metallic, flat face of greater than or equal to 0.65" diameter. 2) Drill chuck has a bit hole of less than or equal to 0.56" diameter. 3) Depending on the chuck face dimensions and size, an optional Standard Chuck Guide may be required to prevent displacement on the chuck face or detachment during rotation. 4) Maximum drill RPM is equal to or less than 2500 RPM. | Generally compatible (1*) under the following conditions: 1) Drill chuck has a round, metallic, flat face of less than 1.10" and greater than 0.70". 2) Maximum drill RPM is equal to or less than 2500 RPM. 3) Use only a Standard Chuck Guide with a center hole diameter that is slightly larger than the round, metallic flat chuck face. | Chuck Extensions are INCOMPATIBLE with pneumatic drills due to the fast rotational acceleration of pnuematic drills. Do NOT use or attempt to use Chuck Extensions with pneumatic drills. |
| Rotary Impact Hammer Drill | INCOMPATIBLE. Do NOT attempt to use BullseyeBore Core with a Rotary Impact Drill. | INCOMPATIBLE. Do NOT attempt to use BullseyeBore Core with a Rotary Impact Drill. | INCOMPATIBLE. Do NOT attempt to use BullseyeBore Core with a Rotary Impact Drill. |
(1*) BullseyeBore Core and the accessories were designed with the goal of working with most common standard electric drills and drill chucks, but due to the vast number of drill and chuck combinations, some careful user testing is required prior to use. Please read and follow the BullseyeBore Core Safety Guidelines before attempting to use BullseyeBore Core or any accessories on a drill or in an actual drilling operation.
