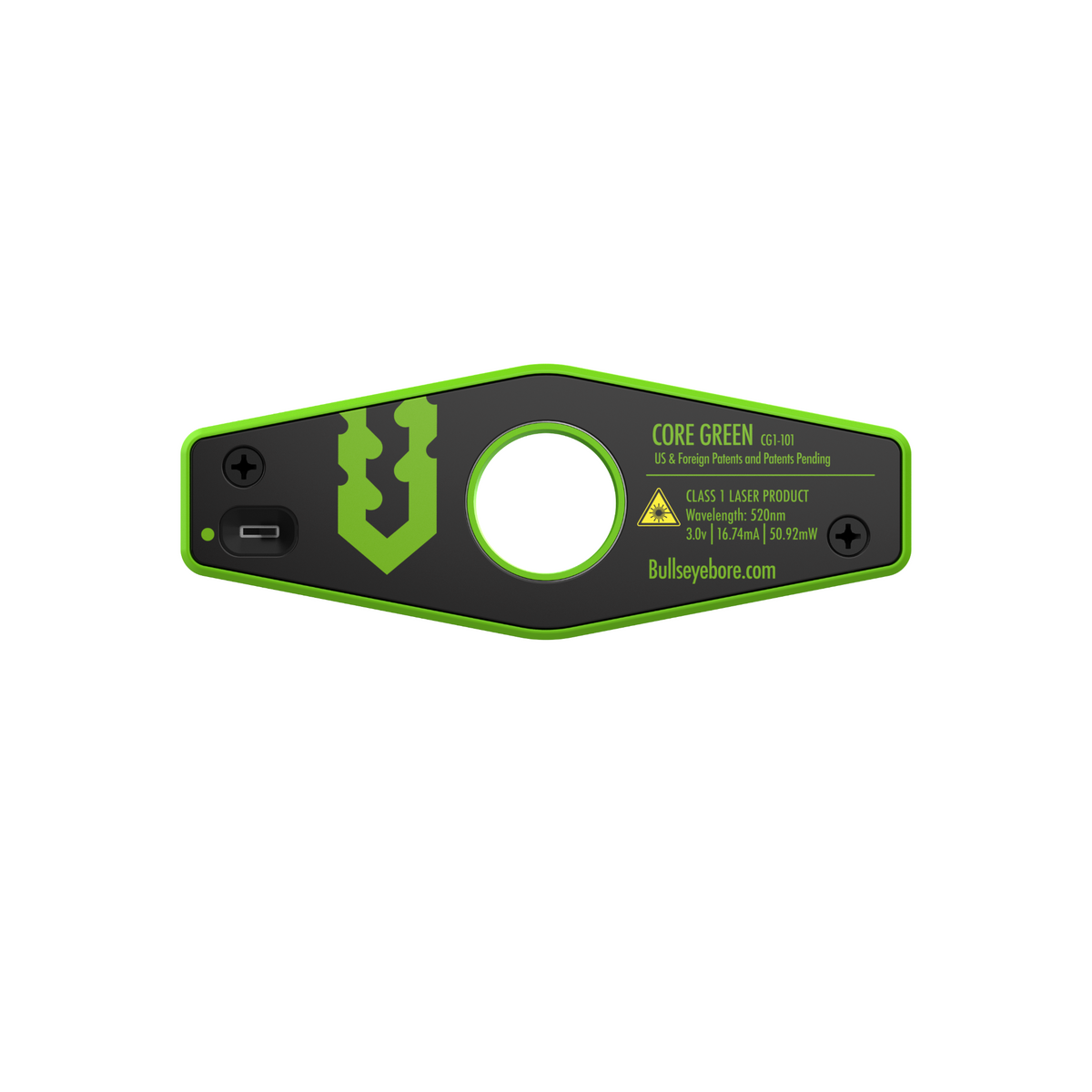

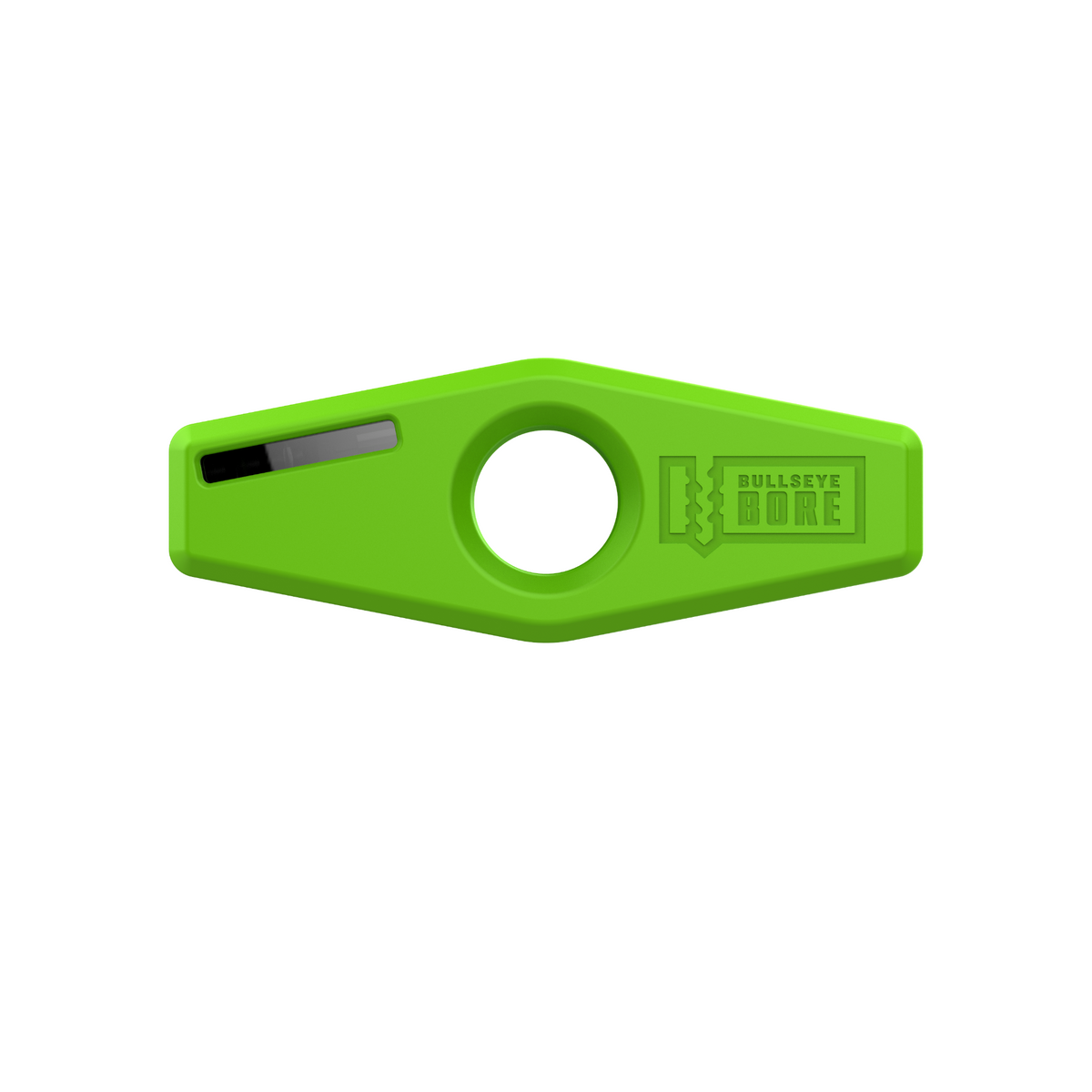

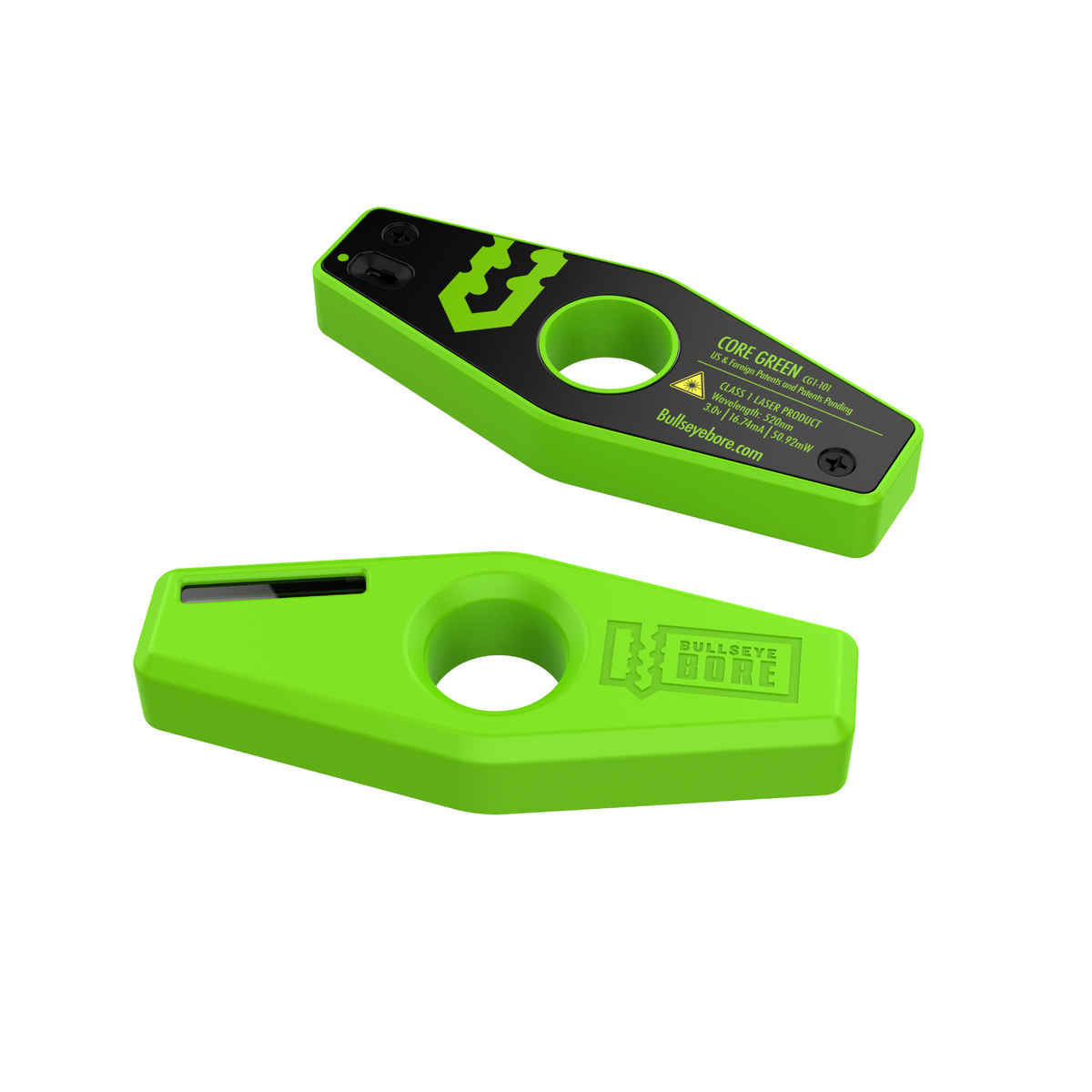

CG1-101 MODEL DESCRIPTION | BullseyeBore Core Green Extended Distance |
---|---|
Ideal For | High visiblity use (under direct lights, dark surfaces, or some shaded outdoor conditions), designed for extended length bits 2" to 8" (5.1cm to 20.3cm) and some specialty bits |

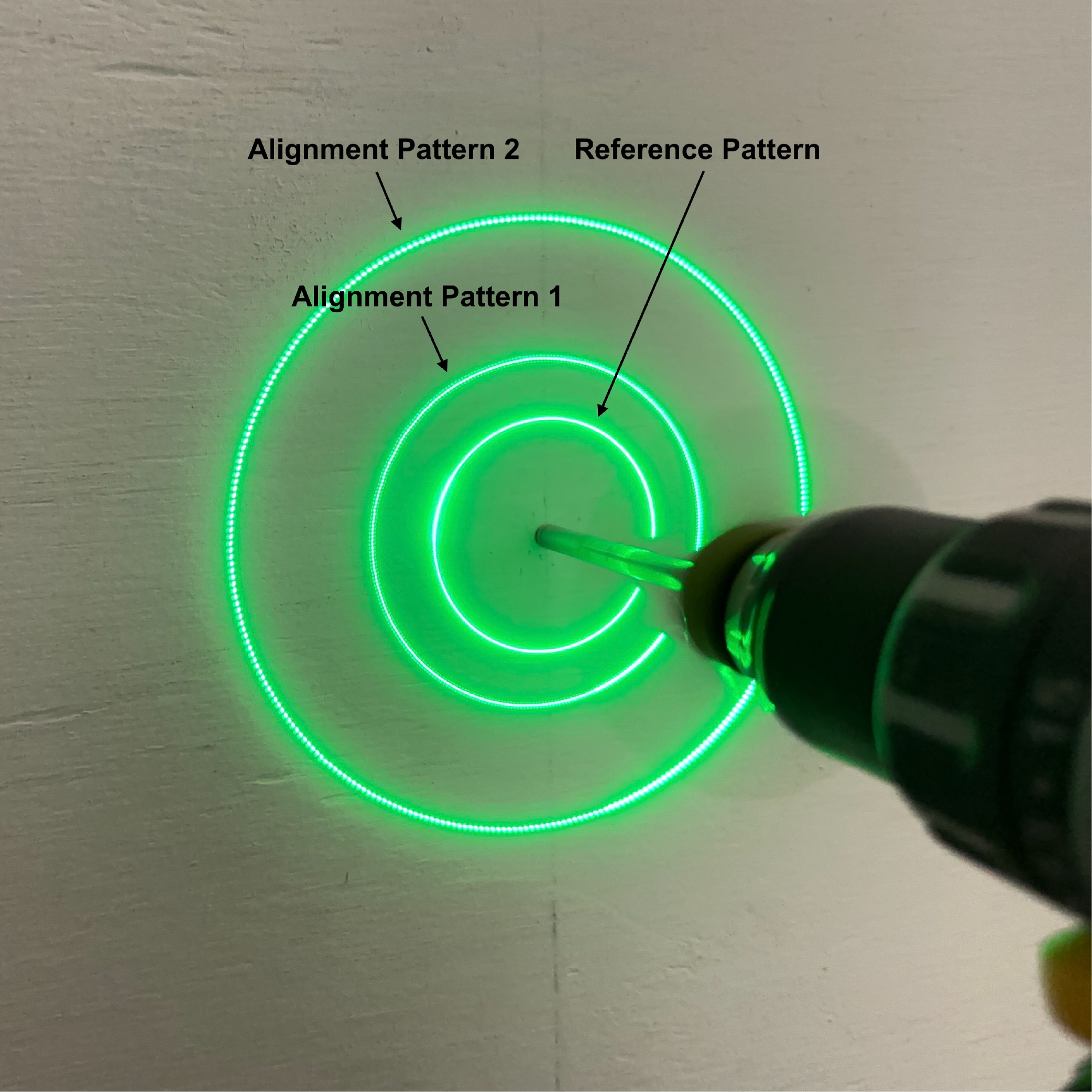

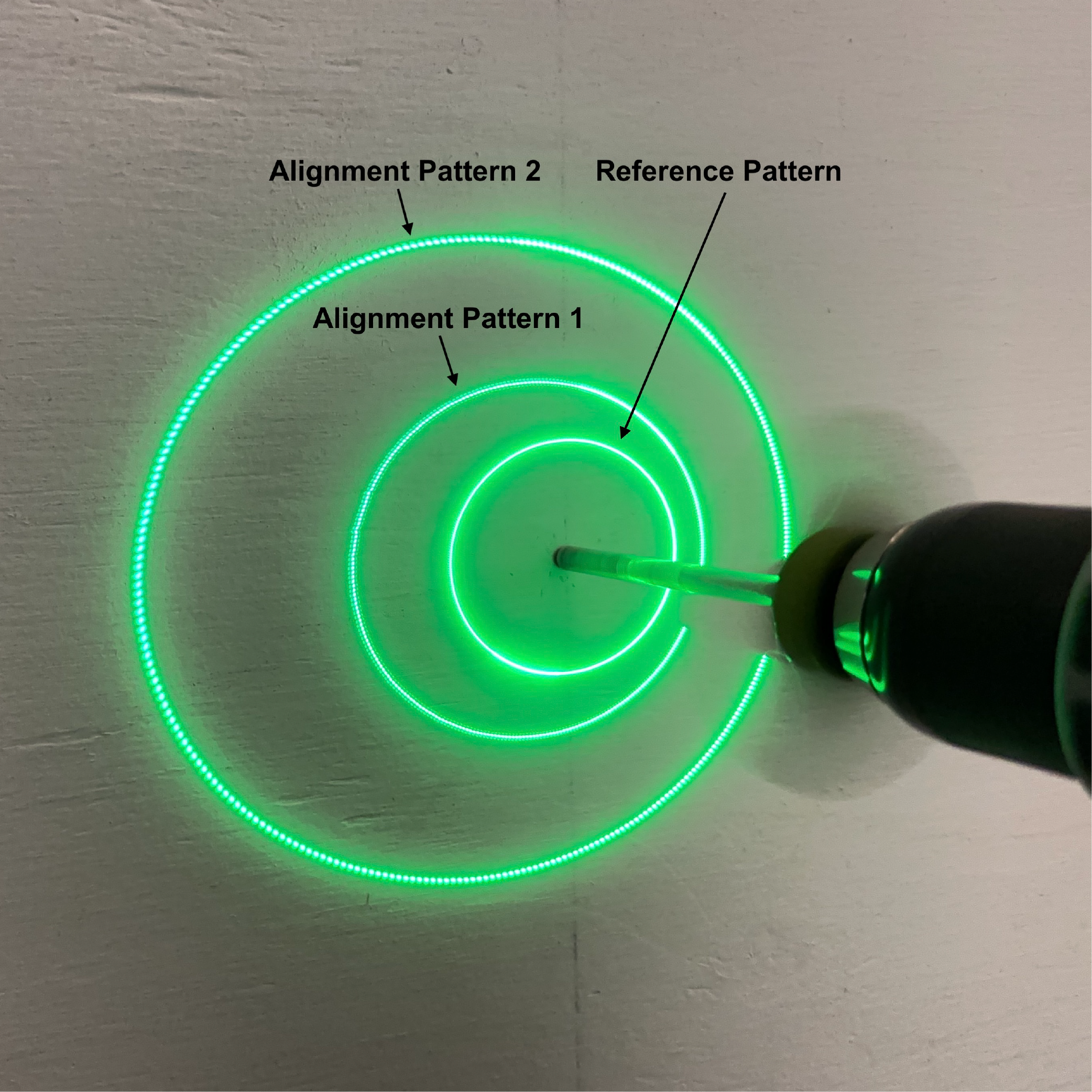

Projected Laser Beam Count | 3 (1 Fixed, 2 Alignment) |
Laser Color | Green (520nm) |
Laser Output | 1mW / 3 = ~0.33mW per beam |
Estimated Battery Duration (357 Duracell or Engergizer) | ~2.5 hours |
Operating Temperature Range | 20°F to 100°F (-7°C to 38°C) |
Water Proof | No |
Water Resistant | No |
Dust & Debris Resistant | Yes |
Laser Certification | Class 1 |

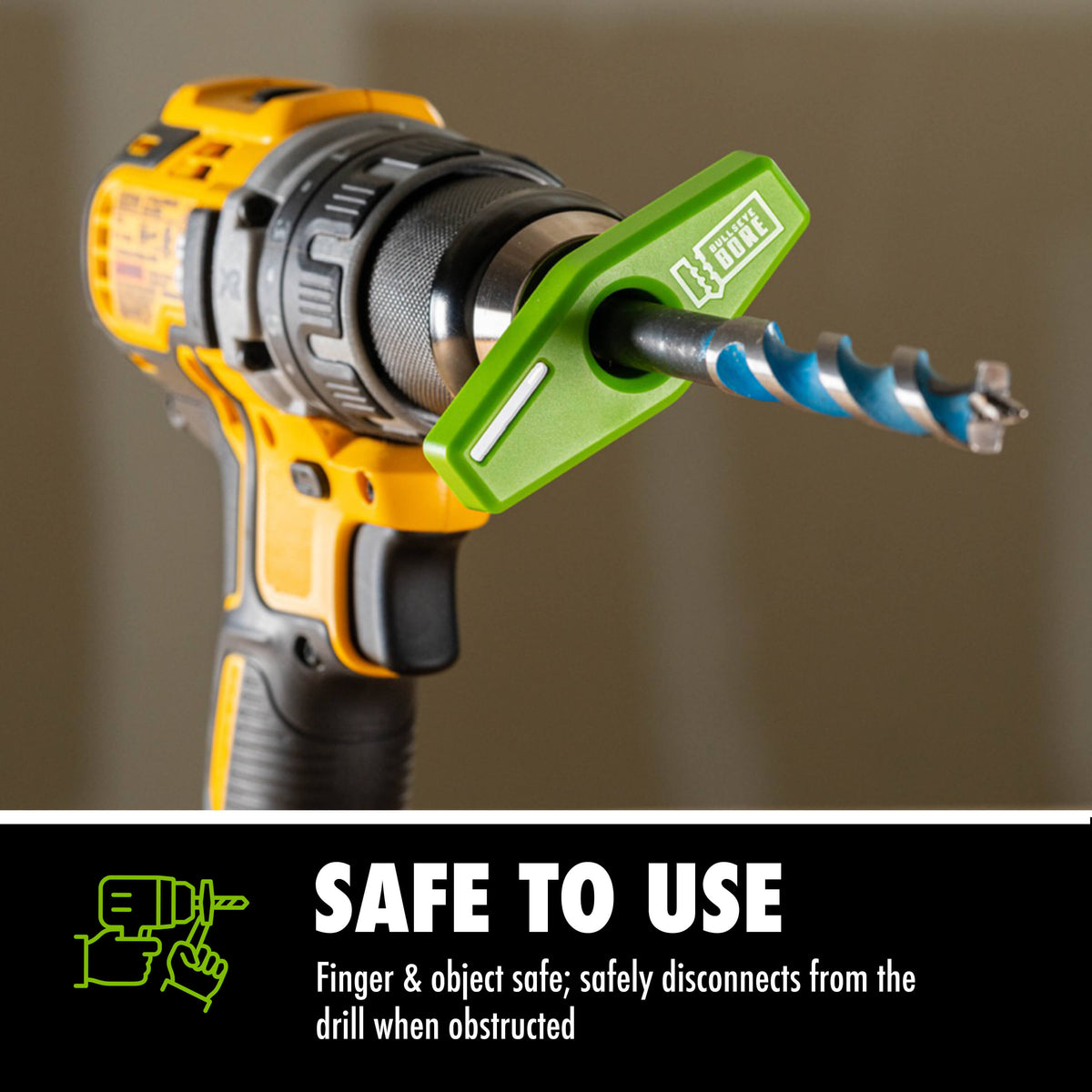

Drill Chuck Face Compatibility | Metallic, Flat Face ≥ 0.65" (1.7cm) |
Operational Bit Length Range | 2" to 8" (5.1cm to 20.3cm), up to 10" (25.4cm) with optional Chuck Extension |
Maximum Bit Diameter | 0.5" (1.3cm) |
Maximum Drill RPM | 2500 RPM |
Batteries | (2) LR44, recommend 357 Silver Oxide Disposable Coin Cell |
Dimensions (L * W * H) | 2.91" × 1.10" × 0.45" (7.4cm × 2.8cm × 1.1cm) |
Weight (w/o Batteries) | 19gm |
Material | Polycarbonate |

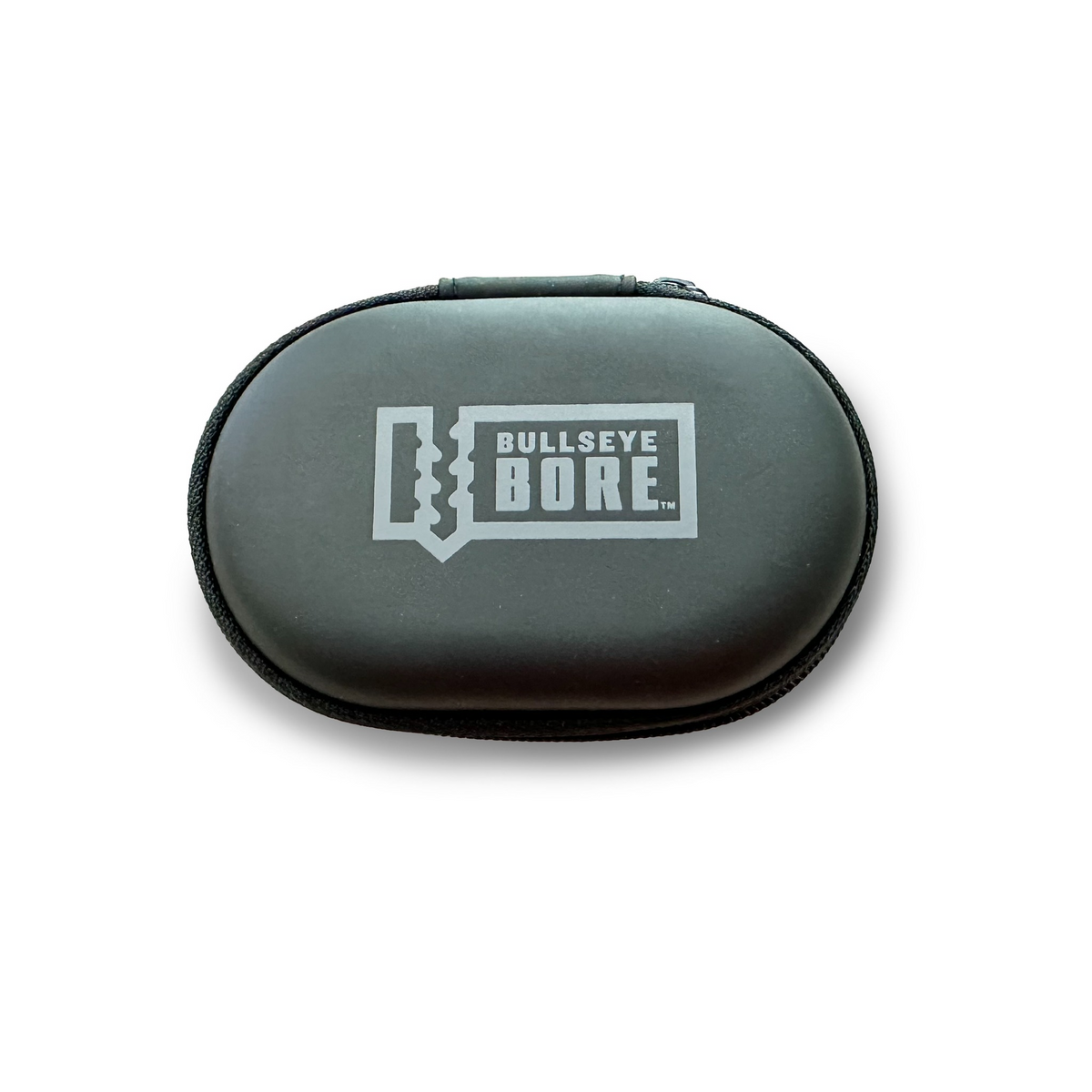

Includes Protective Hard Shell Case | Yes |
Includes Batteries | Yes, (2) LR44 |
Package Contents | BullseyeBore Core unit Protective hard case LR44 batteries User manual |
